Ada Architecture Pods Are Here – How Do They Stack Up Against Ampere?

A performance comparison between Nvidia’s Ada and Ampere architectures, with benchmark results across Stable Diffusion and text generation workloads.

Ada Architecture Pods Are Here – How Do They Stack Up Against Ampere?

The Ada architecture is the latest architecture developed by Nvidia that is capable of achieving vastly improved performance on AI and HPC workloads compared to previous Nvidia GPU architectures. Ada also comes equipped with a new generation of Tensor Cores, which greatly accelerate matrix operations commonly used in deep learning algorithms. In addition, Ada brings with it higher clock speeds, lower power consumption, and a die cache size that is 16 times larger than that found on Ampere cards. This architecture represents a significant step forward for Nvidia in its pursuit of providing cutting-edge computing solutions for data centers.

Benchmarking Ada vs Ampere cards

Below are data collected via test runs of two different Ada pods compared to the old Ampere architecture.

Stable Diffusion task runtime in seconds (100 inference steps, 5 images per batch)

This test was conducted using the Runpod Stable Diffusion Template using the AUTOMATIC1111 interface.

Resolution	RTX 6000 Ada (4x)	RTX 4090 Ada (4x)	A6000 Ampere (4x)	A6000 Ampere (1x)
256x256	28	57	16	47
512x512	38	58	24	52
768x768	39	70	60	109
1024x1024	104	91	126	360
1280x1280	195	299	340	600
1536x1536	309	320	549	1201
1792x1792	484	602	1809	2200

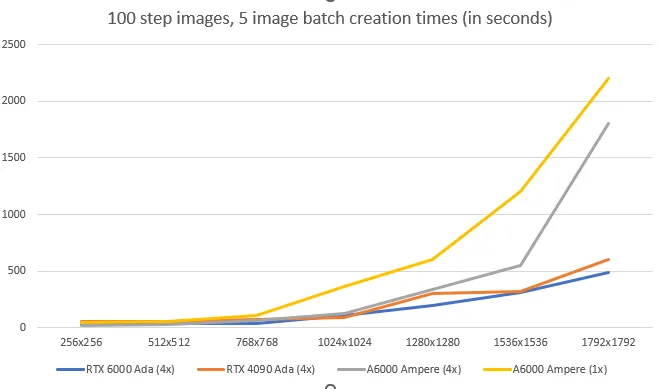

Line chart of 100-step image batch creation times by resolution for RTX 6000 Ada, RTX 4090, and A6000 Ampere GPUs

These results show that aside from the (probably rather questionable) use case of pumping out very small images, the Ada cards show up to a 50% increase on mid-level images and up to tripled or even quadrupled performance on the largest possible images within Stable Diffusion.

Text generation tokens per second in Oobabooga per model (fully loaded context)

This test was conducted using Oobabooga in the Runpod Text Generation UI Template with a pre-existing text log large enough to completely fill the context buffer.

Model	A6000 Ada	RTX 4090 Ada	A6000 Ampere
Pygmalion 350m	15.21	15.91	14.6
Pygmalion 6b	12.3	11.31	10.7
KoboldAI 13B-Erebus	2.03	1.9	1.3

Bar chart of KoboldAI 13B-Erebus tokens per second for RTX 6000 Ada, RTX 4090, and A6000 Ampere

Looking at text generation, we also see a solid increase in tokens per second even on smaller models that nudges close to being 70% faster on the computationally expensive Erebus model.

How Do I Set Up A Pod On Ada?

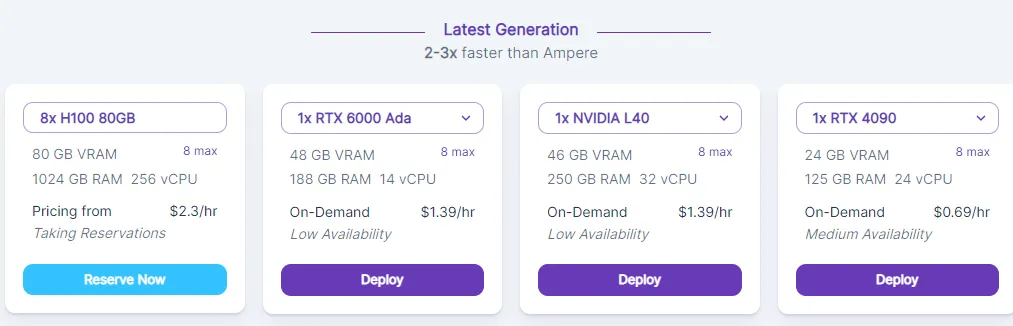

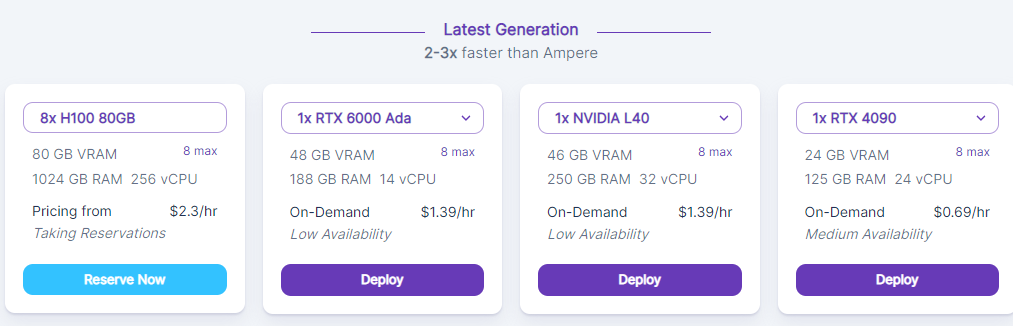

Simple - when setting up a pod, just ensure that you select an option at the top displayed under Latest Generation, such as what you see under the Secure Cloud listing. These GPUs tend to be more highly in demand, so grab them while you can!
